ZEBRA - Zero-knowledge (Anonymous), batched, revocable and auditable credentials

ZEBRA supports -

1. Auditability - Authorized auditors identify the owner of a maliciously behaving user.

2. Revocation - as credentials are often lost or stolen, and credentials of malicious users need to be revoked.

3. On-chain verification - With the primary goal of minimizing the verification cost using ZK-SNARKs. ZEBRA further reduces the cost of credential verification through batched verification.

Note: Batched verification relies on an untrusted aggregator to verify many credential verification proofs and recursively prove their validity to the contract with a single SNARK proof, the cost of which is amortized across multiple users.

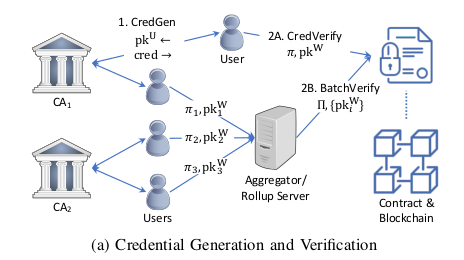

System Model

Source: This paper

• Credential Verification Smart Contract:
  • This smart contract is responsible for verifying a credential (protocols 2A and 2B) and issuing an on-chain access token to the nominated wallet corresponding to the user.
  • These tokens can then be efficiently checked by the smart contract of the access-controlled application before granting access to the wallet.
  • It also stores the list of approved CAs and their revocation lists.

• Users:
  • Users can obtain a credential cred associated with their public-key $pk^U$ from any $CA$ approved by the access-controlled application if the user satisfies the issuance policy (protocol $1$).
  • They can then prove on-chain that they hold a valid credential in a privacy-preserving way by providing a proof $\pi$ to get an access token for their wallet $pk^W$ (protocol $2A$).
  • We assume users are malicious and can act arbitrarily to get verified without holding a valid credential.

• Certificate Authorities (CAs):
  • CAs are organizations trusted to issue credentials to users if they satisfy the application’s credential issuance policy (protocol 1).
  • A CA can revoke a credential it issued by adding its unique identifier $id$ to the revocation list (protocol $5$).
  • They also help auditors in deanonymizing malicious users of their issued credentials (protocol $4$).
  • We assume the $CA$s are trusted for integrity since they are reputed organizations authorized by the application.

• Aggregator/Rollup Server:
  • The aggregator/rollup server is an untrusted party that batches credential verification transactions for $L1$ and $L2$ wallets, respectively, to reduce on-chain verification costs.
  • By sending a short proof $\Pi$ to the contract which ensures that the server knows a valid credential verification proof $\pi_i$ for each $pk^W_i$ in the batch (protocol $2B$).

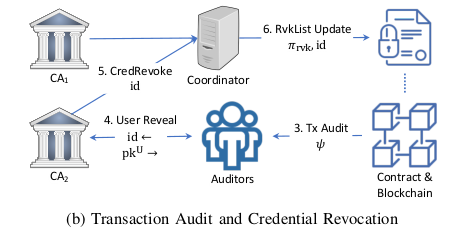

Source: This paper

• Auditors:
  • Auditors can audit a credential verification transaction via its associated audit token $ψ$ if a majority of them agree to it (protocol $3$).
  • The audit reveals a unique credential identifier $id$ that embeds the CA that issued it.
  • Auditors then share $id$ with the issuing CA, and the CA deanonymizes the user by sending its user’s public key $pk^U$ or any other identity information to the auditors (protocol $4$).
  • ZEBRA can handle a minority of malicious auditors.

• Contract Coordinator:
  • The coordinator is responsible for managing the credential verification contract.
  • Its responsibilities are updating the list of approved CAs according to the access policy.
  • Batched updates to revocation lists of all CAs.
  • No need to trust the coordinator to post correct updates to the revocation list and require that it provide a proof $π_{rvk}$ ensuring that it knows a valid signature from the CA associated with the credential identifier $id$ it is adding to the revocation list (protocol $6$).

  Preliminaries

  • zk-SNARKs: zk-SNARK is a tuple of three algorithms:
    • Setup$(1^λ , R) \rightarrow crs_R$ : On input security parameter $\lambda$ and relation , outputs a common reference string $crs_R$.
    • Prove$(crs_R , x, w) \rightarrow \pi$ : On input $crs_R$ and a statement-witness pair $(x, w) \in R$, outputs a proof $\pi$.
    • Verify$(crs_R , x, \pi) → \{0, 1\}$: On input $crs_R$, statement $x$ and proof $\pi$, outputs a bit to indicate if the proof is valid.

    Authors also use simdSNARK to denote a “data-parallel” SNARK which takes as input multiple statement-witness pairs and outputs a single succinct proof $\pi$.

  • Digital Signature: The signature schemes that are existentially un-forgeable under chosen message attacks (EUF-CMA). They consists of three algorithms $SIG = (Gen, Sign, Verify)$
    • Gen$(1^\lambda) \rightarrow (sk, vk)$: on input security parameter $\lambda$, outputs a secret key $sk$ and a public verification key $vk$.
    • Sign$(sk, m) \rightarrow \sigma$: on input sk and message $m$, output signature $\sigma$.
    • Verify$(vk, m, \sigma) → \{0, 1\}$: on input $vk$, $m$ and $\sigma$, outputs $1$ if $\sigma$ is a valid signature for $m$ w.r.t. $vk$.
  • Threshold Public-Key Encryption (TKPE): Use threshold public key encryption (TPKE) satisfying the simulation based IND-CCA2 security notion defined in TKPE.
    • Setup$(1^\lambda , n, t) → \{pk, vk, (sk_1, \dots, sk_n )\}$ : on input threshold $t$ for $n$ parties, outputs the public key $pk$ and verification key $vk$, along with secret keys $sk_i$ for each party.
    • Enc$(pk, m; ρ) \rightarrow ct$: encrypts message $m$ under public key $pk$ using randomness $\rho$.
    • Dec$(ct, sk_i) \rightarrow m_i$ : computes a partial decryption of $ct$.
    • Verify$(pk, vk, m_i) \rightarrow \{0, 1\}$: checks whether $m_i$ was correctly computed using $pk$ and $vk$.
    • Combine$(pk, vk, \{m_i\}_{i\in S \subseteq [n] s.t. |S| \geq t+1}) \rightarrow m$ : recovers message $m$ given $t+1$ partial decryptions which verify successfully.
  • Merkle Trees : The sparse merkle trees SMT are authenticated data structures MT on key-value pairs $(k, v)$ supporting the following operations -
    • Add$(k, v)$ : inserts a key-value pair $(k, v)$ in MT . If the key already exists, the value is updated.
    • Root : outputs the current merkle-root of MT.
    • MProve$(k) \rightarrow P$ : outputs a membership proof for key $k$.
    • MVerify$(rt, k, v, P ) \rightarrow \{0, 1\}$ : on inputs root $rt$, key $k$, value $v$ and proof $P$, outputs $1$ if $(k,v)$ exists in $rt$.
    • NMProve$(k) \rightarrow P$ : outputs a non-membership proof for key $k$.
    • NMVerify$(rt, k, P) \rightarrow \{0, 1\}$ : on inputs root $rt$, key $k$ and proof $P$, outputs $1$ if $k$ does not exist in $rt$.

  Definitions

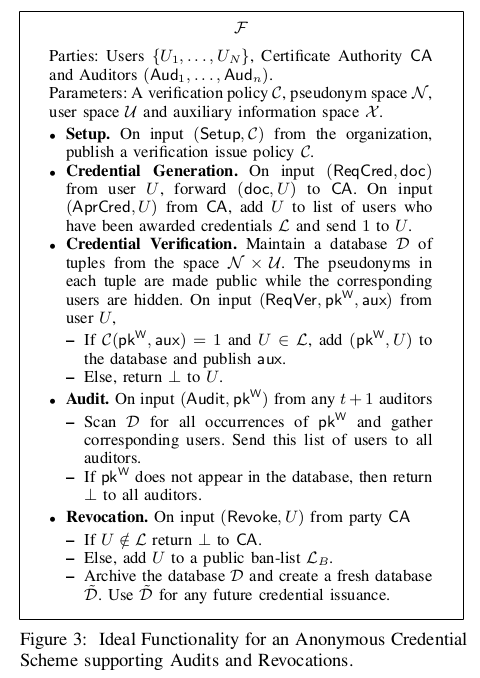

  Anonymous Credential Scheme

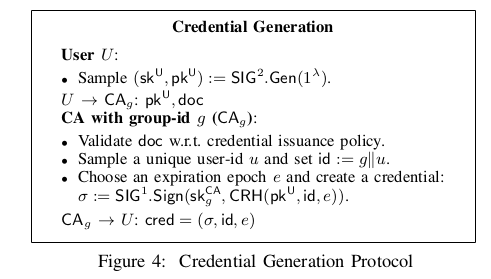

  1. Credential Generation



  Example: A user provides a identity document (Driver’s Licence or Passport, etc) issued by a Government authority and his/her public key $pk^U$ to get a credential $cred = (\sigma, id, e)$ from CA.

  Note: In a real system there are far fewer users than the number of public keys. We leverage this by using compact 40 -bit identifiers as opposed to 256 -bit public keys, which in turn reduces the credential verification circuit size and also leads to smaller on-chain storage costs during revocation.

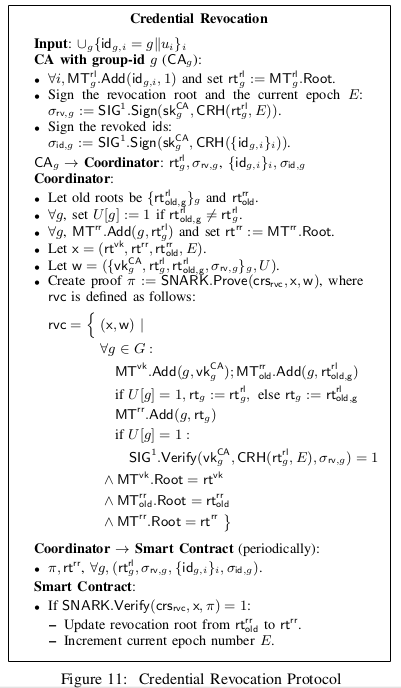

  2. Credential Revocation

  • $MT_g^{rl}$ : stores credential identifiers revoked by $CA_g$
  • $MT_g^{rr}$ : stores merkle-roots of each CA’s revocation list

  The coordinator then locally updates $MT_g^{rr}$ and creates a proof $\pi$ attesting to the correctness of new revocation root $rt^{rr}$:

  • $rt^{rr}_{old}$, known by the contract, is the old root of revocation merkle tree with $(g, rt^{rl}_{old},g)$ as leaves.
  • $rt^{rr}$, provided by the coordinator, is the new root of revocation merkle tree with $(g, rt^{rl}_g)$ as leaves.
  • $rt^{vk}$, known by the contract, is the root of CA’s verification key merkle tree with $(g, vk^{CA}_g )$ as leaves.
  • $∀g ∈ G$ s.t. $rt^{rl}_{old, g} \neq rt^{rl}_g$ , I know a signature $σ_{rv,g}$ on $(rt^{rl}_g , E)$ w.r.t. $vk^{CA}_g$ , where $E$ is the current epoch number.

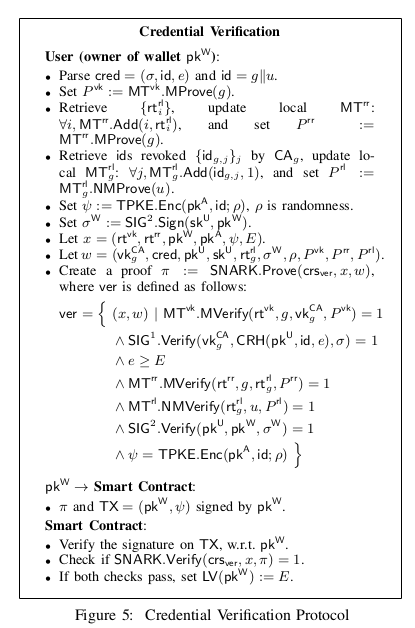

  3. Credential Verification

  • A user owning a credential cred from a CA, say $CA_g$ , can use it to issue an ephemeral access token $\psi$ for any wallet $pk^W$ it owns.
  • The audit token is simply an encryption of the unique credential identifier $id = g || u$ corresponding to the credential used for verification.
  • These tokens are checked by the access-controlled application before granting access and they are only valid for one epoch.
  • Epoch number incremented when revocation list updated.
  • Access token verification is done by checking if the epoch identifier matches the current epoch.
  • The contract maintains a hash-map $LV$ that maps wallet addresses to the epoch when they are last verified, i.e. $LV(pk^{w}) = E$.

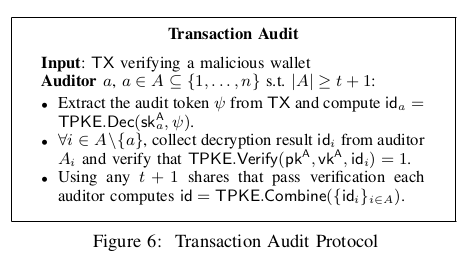

  4. Transaction Audit

  • A threshold number $( t + 1$ out-of- $n)$ of auditors can deanonymize the user associated with a wallet, if they deem the wallet has displayed malicious behaviour.
  • Since access token $\psi$ encrypts $id = g || u$ using the public key $pk^A$ of the auditors, t+1 of them can collaboratively decrypt $\psi$ to recover $id$.
  • When this $id$ points the auditors to the issuing $CA_g$, who can then reveal user’s identity and revoke the corresponding credential if required.

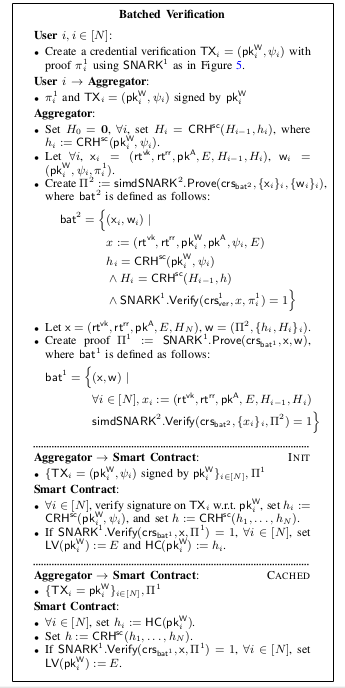

5. Batched Verification

• Authors instantiate $SNARK^1$ with pairing-based Groth16 (over BN254)

• $simdSNARK^2$ with discrete-log-based Spartan (over Grumpkin) optimized for data-parallelism.

• Both of these SNARKs use R1CS arithmetization.

Source: This paper

Batching solution works as follows with two layers of recursion -

• A batch of $N$ users independently create credential verification proofs $\{π_i^1\}_{i∈[N ]}$ using $SNARK^1$ , and send them along with transaction data $\{TX_i = (pk^W_i , ψ_i )\}_{i \in [N ]}$ to the aggregator.

• First, the aggregator verifies the proofs $\{π_i^1\}_{i∈[N ]}$ using $simdSNARK^2$ to output $\Pi^2$.

• Then the aggregator verifies $\Pi^2$ using $SNARK^1$ to output $\Pi^1$, which is then sent to the contract for batched verification along with $\{TX_i\}_{i∈[N]}$.

• Finally, the contract processes $\{TX_i\}_{i∈[N]}$ and verifies $\Pi^1$ to ensure the validity of user proofs $\{π_i^1\}_{i∈[N ]}$ before updating access tokens for $\{pk^W_i\}_{i\in[N ]}$, i.e, $LV(pk^{w}) = E$.

Conclusion

1. ZEBRA supports auditability and revocation

2. ZEBRA relies on ZK-SNARKs for reducing the on-chain verification costs and batch credential verifications.

References

1. ZEBRA: Anonymous Credentials with Practical On-chain Verification and Applications to KYC in DeFi, https://eprint.iacr.org/2022/1286.
